Electrical Panel Box Hinge

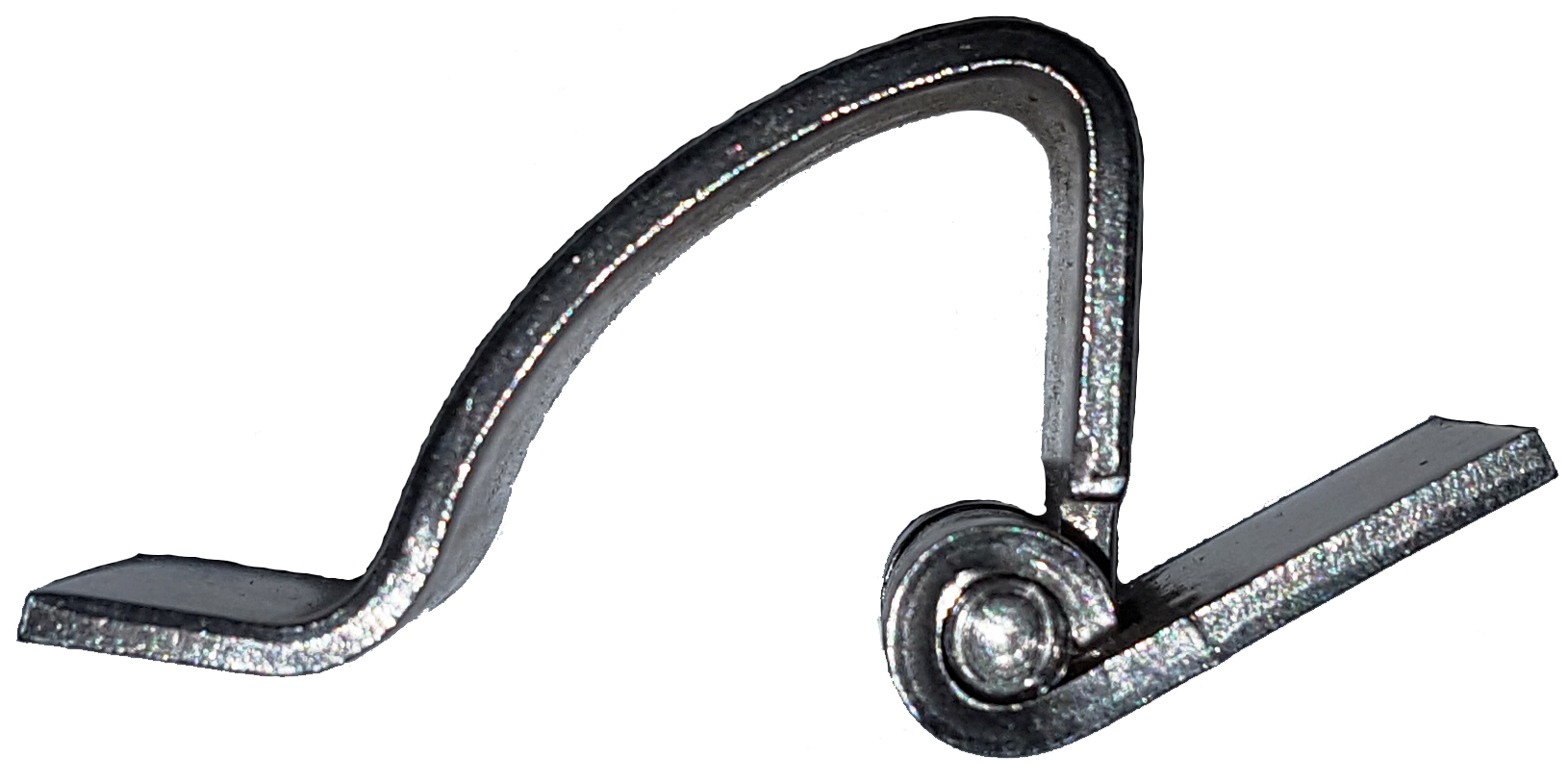

Concealed hinges keep hinge out of sight when door is closed. One leaf of these concealed hinges swings the door out.

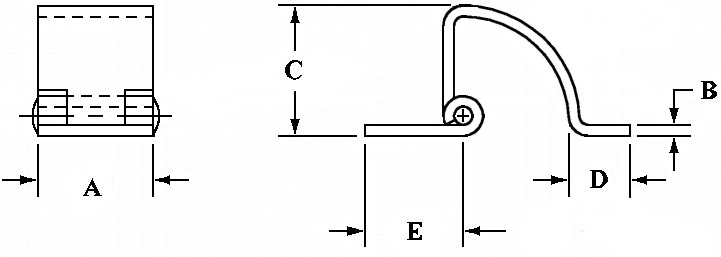

Stock No.

Material

A

Length

B

Thickness

C

Height

D

Width

E

Width



Radius

Pin

Dia.

EPHS80

Steel

.80

.075

.90

.42

.68

17/32

.125

EPHS125

Steel

1.25

.090

1.06

.68

.95

17/32

.187

EPHS200

Steel

2.00

.060

.750

.625

.68

17/32

.130

EPHC80

Stainless

.80

.075

.90

.42

.68

17/32

.125

EPHC125

Stainless

1.25

.090

1.06

.68

.95

17/32

.187

Click Here to Enlarge Charts
