LATCH HINGES AND SPRING RELEASE HINGES

LATCH HINGES

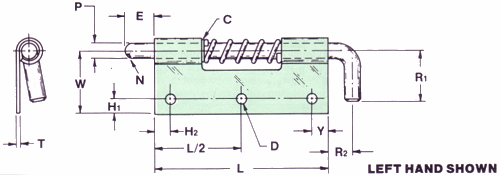

latch hinge diagram

DIMENSIONS (STANDARD SIZES SHOWN)
* SPECIALS AVAILABLE UPON REQUEST

click for a larger view of chartlatch hinge chart
*DIMENSIONS THAT CAN BE ALTERED TO MEET YOUR SPECIFICATIONS

POINT STYLE

latch point styles

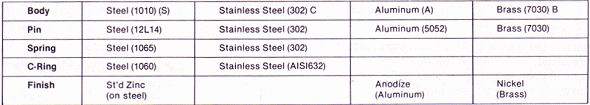

Material
click for a larger view of chart

latch hinge material chart

Available in Right Hand (R) or Left Hand (L) models. Special forms, offsets, swaging or welding projections available. Latch can be furnished assembled, unassembled, or body only.

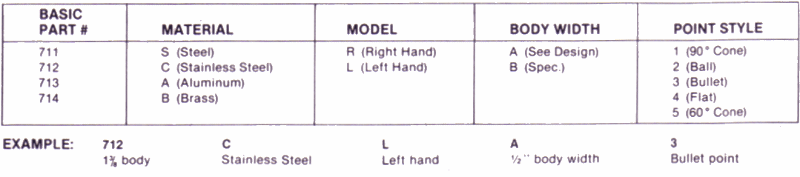

Ordering Information
click for a larger view of chart

latch hinge order charg


SPRING RELEASE HINGES

spring release hingesSpring release hinges combine a hinge and a latch in a standard piece of hardware. The spring release hinge has either a pair of spring-loaded handles or a single handle, which pulls toward the center to release the body or door from the keeper. An alternate style relies on a an engagement hole or slot in the adjoining surface. Installation is simple and inexpensive using screws, rivets or by welding. All styles are manufactured to close tolerances. End play and side play are held to a minimum, insuring a precision fit and smooth operation.

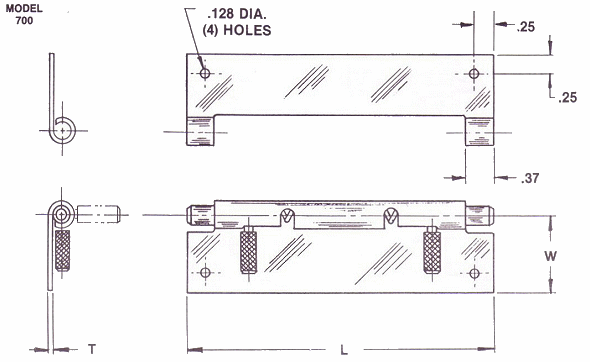

spring release hinge diagram



E-mail us your special requirements and we will promptly
get back to you with a cost saving quote.
